Spinach Variety and Seeding Method Trial

Published Oct 5, 2021

This research was funded by Ceres Trust.

In a Nutshell:

  • With a desire to prolong availability of spring-planted spinach into summer – a period when bolting and subsequent yield reduction is more likely to occur – Hannah Breckbill, Emily Fagan and Kate Edwards sought to determine if planting methods and variety would influence yield.
  • They compared yield, bolting and yellowing among three spinach seeding methods: (1) seeder (1x rate), seeder (2x rate), hand-seed (2x rate); and between two varieties (Kolibri, Kookaburra).

Key Findings:

  • Breckbill and Fagan saw no statistically significant effect of seeding method on yield; however, numerically, hand-seeding generated greater yield followed by using a seeder at the 2x rate.
  • Edwards saw no difference in yields between varieties, but using a seeder at the 2x rate resulted in statistically greater yields than hand-seeding and using a seeder at the 1x rate.

Background

Picture 1

Fully-grown spring-seeded spinach at Kate Edwards’ farm in 2021. Photo taken June 9.

As a cool-season vegetable, spinach does best when planted late summer or fall.[1] Spring plantings can also be successful but have a tendency to ‘bolt’ (i.e. flower and set seed) as day length increases into summer, causing the leaves to become bitter in taste and unmarketable. Because of spinach’s popularity at farmers markets and in community supported agriculture (CSAs), farmers like Hannah Breckbill, Emily Fagan and Kate Edwards share an interest in prolonging its availability on their farms as long as possible through the summer. Conducting variety trials on their farms is a great way to determine which varieties are likely to bolt least and yield best. Along with Bonnie Riggan, Breckbill, Fagan and Edwards conducted spinach variety trials on their farms in 2020.[2] They found that the varieties Kolibri and Space generally yielded best and bolted least.

After having developed a greater understanding of which varieties perform best on their farms, Breckbill, Fagan and Edwards next set out on a mission to determine the optimal seeding rates and methods for their enterprises. Edwards typically seeds spinach at two times the recommended rate to compensate for the high clay content of soils at her farm and prefers hand-seeding to using a seeder for greater accuracy and predictability. She commented, “Calibrating mechanical seeders in horticulture is very imprecise. Unpredictable seeding rates results in under- or over-seeded spinach and inconsistent yields.” With hopes of substantiating their opinion that hand-seeding at the 2x rate is the best seeding method for their sites, Breckbill, Fagan, and Edwards designed an on-farm research trial to compare spinach yield and quality among three seeding methods: (1) Seeder 1x– one pass with a seeder at the recommended rate, (2) Seeder 2x – two passes with a seeder (double the recommended rate) and (3) Hand 2x – hand-seeded at two times the recommend rate. In addition to investigating seeding methods, Edwards also compared yield between two different varieties – one of the best yielding varieties from her 2020 variety trials (Kolibri) and a new variety – Kookaburra.

At the outset of the trial, Breckbill and Fagan remarked, “We are motivated to find more consistent success with spinach, which our customers will certainly appreciate.” Edwards added, “I’m looking forward to building connections with other PFI cooperators and staff as well as teaching my farm crew about on-farm research.”

Methods

Design

Pic. 2

Kate Edwards and her newborn, Ada Marie, appear to be experiencing different levels of enthusiasm while counting spinach seeds. Photo taken April 23, 2021.

Breckbill, Fagan and Edwards established their trials in late April (Table 1) by direct-seeding spinach in each treatment according to their unique experiment designs (Figure A1). At Breckbill and Fagan’s, seeding method treatments were arranged in a randomized complete block design with one treatment assigned to each of three neighboring plots. They replicated each complete set of treatments four times for a total of 12 plots (3 seeding methods × 4 replications = 12 plots), and repeated the experiment by planting a second succession of spinach according to the same experiment design on May 4 (Table 1). Because Edwards assessed both seeding method (3 treatments) and variety (2 treatments), she used a split-plot experiment design. She assigned varieties to one of two neighboring plots, then divided each plot into three subplots to which seeding methods were assigned. Edwards replicated each subplot × plot combination four times for a total of 24 subplots (2 varieties × 3 seeding methods × 4 replications = 24 subplots). The random assignment and replication of treatments enabled us to statistically analyze their data.

Breckbill and Fagan used 2 tsp/10 row-ft as their hand-seeding rate, and calibrated their seeder to drop 1 tsp/10 row-ft in the 1x treatment. Edwards used 200 seeds/10 row-ft as her hand-seeding rate and calibrated her seeder to drop approximately 100 seeds/10 row-ft in the 1x treatment. Additional management information for both farms is summarized in Table 1.

Table 1

Measurements

At the time of harvesting spinach in each plot (Table 1), cooperators assessed plots for bolting and yellowing, which were scored on a qualitative scale of 0, 1, or 2 (0 = “none”, 1 = “some” and 2 = “much”) and were not statistically analyzed. Immediately after harvesting spinach, cooperators weighed spinach harvested from each plot.

Data Analysis

To evaluate the effect on spinach yield of seeding method at Breckbill & Fagan’s and variety and seeding method at Edwards’, we calculated the average yield in each treatment or treatment combination then used Tukey’s tests to compute the least significant difference (LSD) at the 95% confidence level. If the difference in yield for any two treatments or treatment combinations was greater than or equal to the LSD, the treatments were considered to have a statistically significant effect on yield and the cooperator could expect the same results to occur 95 out of 100 times under the same conditions. Conversely, differences less than the LSD indicated the difference in yield was not statistically significant and the treatment had no effect.

Results and Discussion

Yield

Pic. 3

Workers at Kate Edwards’ farm weigh and package harvested spinach. Photo taken June 10, 2021.

In both successions at Breckbill and Fagan’s, there were no differences in yield among the three seeding methods (Figure 1). Breckbill and Fagan originally hypothesized yields would be best in the Seeder 1x treatment. Although the data show Seeder 1x yields were statistically similar to Seeder 2x and hand-seeded yields, numerically the Seeder 1x treatment generated the least yield in both successions. Interestingly, among the treatments in succession 1, variability between reps within the Seeder 1x treatment was lower than in the Seeder 2x and hand-seeded treatments. The differences in variation are visually evident by the greater range in bar heights in the Seeder 2x and hand-seeded treatments compared to the Seeder 1x treatment (Figure 1). Less variability means better consistency, which is valuable to the cooperators; however, variation in the second succession was similarly low across all treatments. In the second succession, one replicate of each treatment experienced bolting that resulted in zero yield for those plots, which resulted in lower yield averages across all treatments in succession 2.

Figure 1

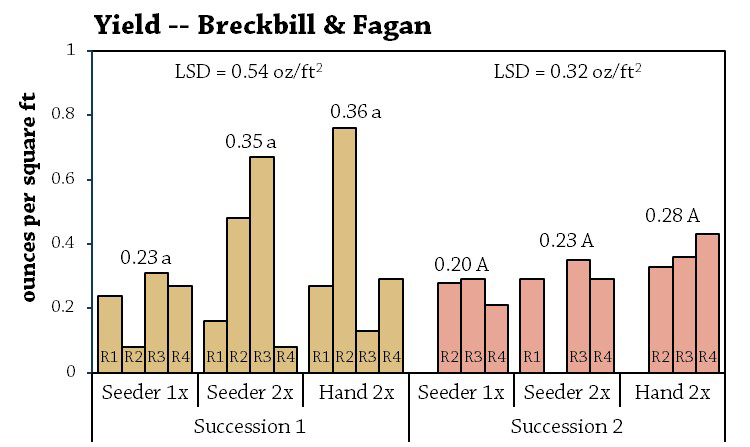

FIGURE 1. Spinach yield (oz/ft2) among seeding methods within successions at Breckbill & Fagan’s farm in 2021. Columns represent yields for each individual rep within a given seeding method and succession. Numbers above the clusters of columns represent the average yield of a seeding method within a succession. Within each succession, because the differences between any two averages is less than the least significant difference (LSD), the yields are considered statistically similar at the 95% confidence level.

Fig. 2

FIGURE 2. Spinach yield (oz/ft2) among seeding methods at Edwards’ farm in 2021. Individual columns represent the average yield of a variety within a given seeding method treatment. Numbers above paired columns represent the combined average yield of both varieties within a seeding method. For any two seeding methods, when the difference between their averages is less than the least significant difference (LSD = 0.48 oz), their yields are considered statistically similar at the 95% confidence level. When the difference in averages between two treatments is greater than or equal to the LSD, their yields are considered statistically different at the 95% confidence level.

At Edwards’, there was no effect of variety on yield, but yields differed among seeding methods. Spinach in her Seeder 2x treatment yielded greater (1.84 oz/ft2) than both her hand-seeded spinach (1.03 oz/ft2) and spinach in her Seeder 1x treatment (1.35 oz/ft2), which both yielded equally well (Figure 2). Actual seeding rates (Table 2) differed between varieties in Edwards’ 1x and 2x treatments due to varietal differences in seed size and limitations of her seeder; however, average seeding rates among seeding methods align with Edwards’ intended seeding rates of 200 seeds per 10 row-ft in the Seeder 2x and hand-seeded treatments and 100 seeds per 10 row-ft in the Seeder 1x treatment. It is interesting that Edwards’ hand-seeded spinach (seeded at 2x) yielded similarly to spinach planted at the 1x rate with a seeder but yielded less than spinach planted at the 2x rate with a seeder.

Table 2

Spinach quality

Bolting and yellowing scores at Breckbill and Fagan’s tended to be greater in the second rather than first succession, which is consistent with their yield trend (Table 3, Figure 1). Slightly warmer than average temperatures along with lower than average rainfall during the second succession’s growth likely contributed to the uptick in bolting and yellowing (Figure A1). No clear pattern emerged for bolting or yellowing among seeding methods within either succession. Bolting scores were the same among treatments within each succession, but spinach seeded at the Seeder 1x rate resulted in less yellowing than spinach hand-seeded at the 2x rate in both successions.

Pics. 4

From left to right, spinach (variety Kolibri) harvested from Kate Edwards’ 1x, 2x and hand-seeded treatments. Photos taken June 11, 2021.

At Edwards’ farm, bolting was minor for both varieties (Table 4). Bolting did not occur at all in spinach seeded at the Seeder 1x rate and was minor in the other two seeding methods. In contrast, yellowing scores of spinach seeded at the Seeder 1x rate were greater than in spinach seeded via the other two methods (Table 5). Additionally, yellowing in Kolibri tended to be more prevalent than in Kookaburra except in the Seeder 1x treatment. However, as with bolting at Edwards’, yellowing was minimal.

Table 3

Table 4

Table 5

Conclusions and Next Steps

Contrary to their hypothesis that planting spinach with a seeder at the 1x rate would result in greater yield, Fagan and Breckbill experienced no yield differences among seeding methods in either succession while Edwards experienced the greatest yields using a seeder to plant spinach at the 2x rate. The Kookaburra and Kolibri varieties that Edwards additionally tested yielded similarly. It may be worth nothing that, while not statistically conclusive, hand-seeding spinach (2x rate) at Breckbill and Fagan’s resulted in numerically greater yields in both successions than spinach planted with a seeder at the same rate. Additionally, planting with a seeder at the 1x rate resulted in the lowest yields numerically. Fagan commented, “I do feel that seeding rate impacts how well our spinach yields, even though the data weren’t statistically conclusive. Using the seeder is a job I don’t like to do very much, so I’m not likely to choose to do it that way unless the data really tell me I should.”

Bolting and yellowing tended to occur more in the second rather than first succession at Breckbill and Fagan’s, as expected. And, as with their yield data, seeding method appeared to have no effect on bolting, regardless of the succession. At Edwards’ farm, the seeding method appeared to influence bolting while variety did not. Bolting occurred least when spinach was seeded with the seeder at the 1x rate. Interestingly, the pattern of yellowing scores at Edwards’ farm opposed the pattern of bolting – yellowing scores in the Seeder 1x method were greater than for the other seeding methods, and the Kolibri variety experienced more yellowing than Kookaburra.

Appendix – Trial Design and Weather Conditions

Figure A1

FIGURE A1. Example of experimental designs used by Breckbill and Fagan (top) and Edwards (bottom), which included randomized replications of varieties and seeding methods. This design allowed for statistical analysis of the results.

Fig. A2

FIGURE A2. Mean monthly temperature and rainfall for during the study period and the long-term averages at the nearest weather stations to each farm.[3] A) Decorah (Breckbill and Fagan, about 10 miles away); B) Iowa City (Edwards, about 8 miles away).

References

  1.  B. Philips, E. Maynard, D. Egel, L. Ingwell and S. Meyers, eds. 2020. Midwest Vegetable Production Guide for Commercial Growers. Purdue University. http://mwveguide.org/guide. (accessed August 2021).
  2. Liddle, E., K. Edwards, H. Breckbill, E. Fagan and B. Riggan. 2021. Spinach Variety Trial. Practical Farmers of Iowa Cooperators’ Program. https://practicalfarmers.org/research/spinach-variety-trial/ (accessed August 2021).
  3. Iowa Environmental Mesonet. 2021. IEM “Climodat” Reports. Iowa State University Department of Agronomy. https://mesonet.agron.iastate.edu/climodat/
    (accessed August 2021).
